Cechy

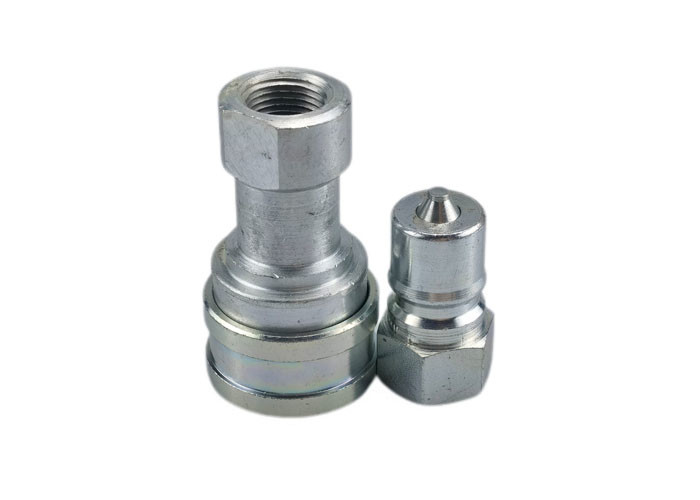

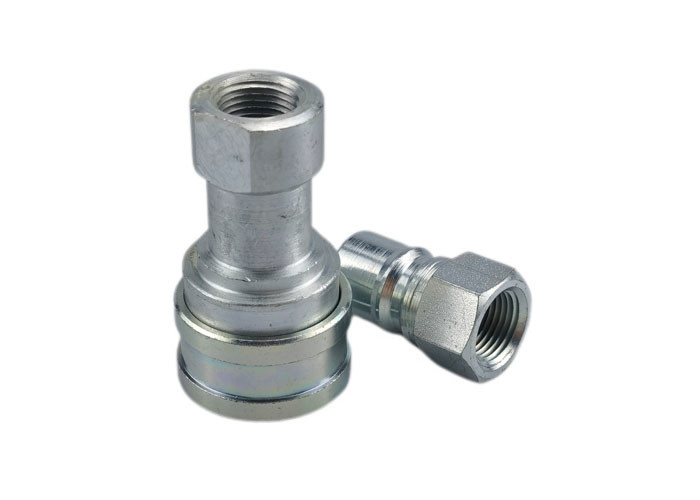

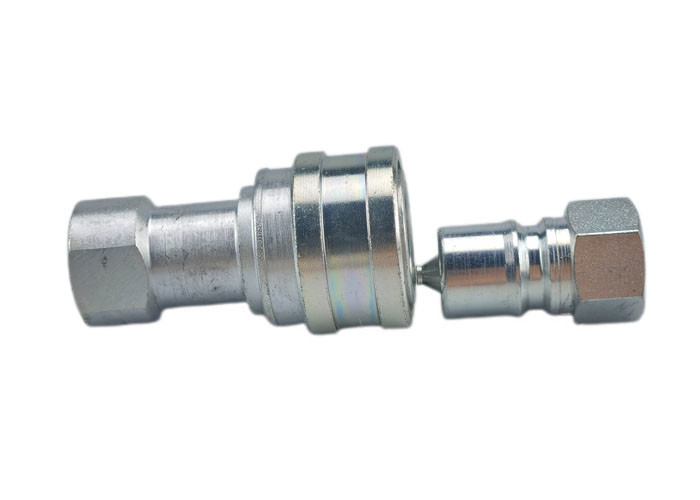

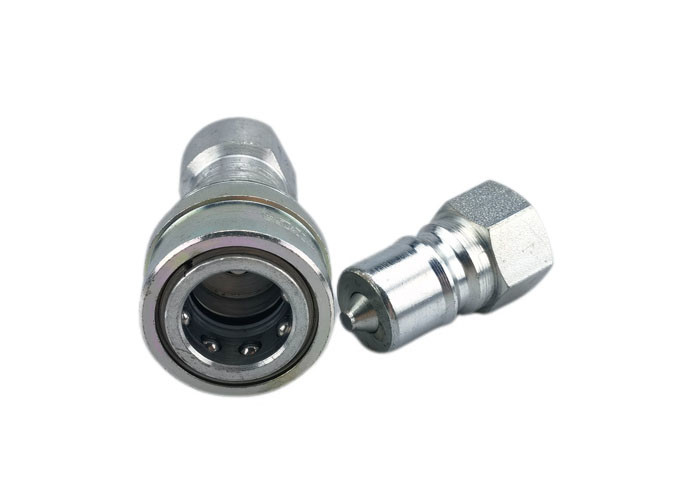

Szybkie sprzęgły hydrauliczne serii CB-4 są wykorzystywane głównie w urządzeniach budowlanych, leśnych, hydraulicznych maszynach i sprzęcie naftowym oraz w innych wymaganych zastosowaniach hydraulicznych.
Standardowe materiały
| Rozmiar ciała | Partnerze. | Węzeł | A | B | Wzdłuż płatów |
| 1/8" | CB-S1S-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1S-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/4" | CB-S2S-1FG | 1/4-19 | 2.26 | 1.17 | 0.75 |
| 1/4" | CB-S2S-1FN | 1 / 4-18 | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3S-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3S-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2" | CB-S4S-1FG | 1 / 2-14 | 2.96 | 1.86 | 1.13 |
| 1/2" | CB-S4S-1FN | 1 / 2-14 | 2.96 | 1.86 | 1.13 |
| 3/4" | CB-S6S-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4" | CB-S6S-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1 " | CB-S8S-1FG | 1-11 | 4.13 | 2.61 | 1.75 |
| 1 " | CB-S8S-1FN | 1-11 | 4.13 | 2.61 | 1.75 |
| Rozmiar ciała | Partnerze. | Węzeł | C | D | E | HEX |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/4" | CB-P2S-1FG | 1/4-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| 1/4" | CB-P2S-1FN | 1 / 4-18 | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3S-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3S-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2" | CB-P4S-1FG | 1 / 2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2" | CB-P4S-1FN | 1 / 2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4" | CB-P6S-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4" | CB-P6S-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1 " | CB-P8S-1FG | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1 " | CB-P8S-1FN | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
